Project 2 - Study Group Scheduler

Study Group Scheduler

Checkpoint 1: 11:55pm Tue 3/10

Checkpoint 2: 11:55pm Tue 3/17

Checkpoint 3: 11:55pm Tue 3/24

Direct Autograder Link

Starter Code

Useful Qiskit Functionality

Introduction

You have been tasked with designing a program to form study groups that meet a set of constraints. Being enrolled in EECS 479, you believe you can speed this task up by writing a quantum algorithm, specifically using Grover’s algorithm and quantum counting.

When forming study groups, there may be multiple restrictions on what constitutes a valid group. For example, there may be a minimum size, we may want to avoid putting people with known time conflicts together, or we may want to guarantee that at least one student who is on track to pass the class is in each group.

A common way to express constraints (and the format we will be following in this project) is the Conjunctive Normal Form (CNF), i.e. an AND of ORs. For example, given three students Richard, Wayne, and Jon, the constraints that

can be summarized in the following CNF form:

(Richard or Wayne) and (Richard or Jon) and (Wayne or Jon) and (Richard or Wayne or Jon) and (~Wayne or ~Jon)


(How to construct CNFs from constraints is beyond the scope of this project and not something we will worry about: we will just assume the CNFs are already provided for us)

This is a small enough example that it’s easy to inspect by hand and verify that there are 2 possible solutions which meet these constraints

  1. Richard and Wayne
  2. Richard and Jon

Each instance of a variable (in its regular or negated form) is called a “literal” and each OR statement forms a “clause”.

Your work for this project will be divided across several components and implemented using the Qiskit SDK.

Part I: Oracle Design

Reference

Inside oracle.py, you will implement a function to generate a “Bitflip Oracle” from a CNF formula, and a function to convert a Bitflip oracle into a “Phase Oracle”. The CNF formula will be passed in as a list of integer lists, where each integer corresponds to a unique variable (negative values indicating negation of the corresponding variable). Elements in the inner list form a clause of ORed values, and all clauses in the outer list are ANDed together. For example:

[[1, 2, 3], [2, -3], [4]]

represents the formula:

(var1 or var2 or var3) and (var2 or not (var3)) and (var4)

Note that because each variable must have a negated value, indexing starts at 1, not 0. For simplicity of implementation, you may assume that a variable does not appear for the first time (reading left to right) before a higher valued integer, no integers are skipped, and that a variable will not appear in the same clause more than once in either its normal or negated form (you do not need to check these conditions - you may assume they are always followed). For example, the following are invalid inputs and you may assume will never be passed in as arguments:

[[1, 4], [2, 3]] # 4 appears before 3
[[1,-2],[2,4]] 	# 3 is skipped
[[1,2],[3,-3]] 	# 3 appears twice in second clause

You also don’t have to worry about empty CNFs for this project (i.e. every test is guaranteed to have at least one variable and one clause).

You have flexibility in how you design your oracles. In general, oracles can often be designed without the need for “ancilla bits” (bits used to hold an intermediate value), but you will likely find it simpler to include them. A straightforward solution is to store the OR result of each individual clause in a separate ancilla bit, and then AND each ancilla bit to store the final result. We recommend using the MCX gate (i.e. a multi-controlled X gate) which can be used to implement both multi-bit AND and OR gates (review De Morgan’s Law if this is not clear). Individual inputs can be negated by setting ctrl_state to the appropriate bit-mask.

from qiskit import QuantumCircuit
from qiskit.circuit.library import MCXGate

qc = QuantumCircuit(5)
num_ctrl_bits = 4
mcx_state = 0b1100 # flips target iff control bits are 0b1100
gate = MCXGate(num_ctrl_bits, ctrl_state=mcx_state)
qc.append(gate, range(5))

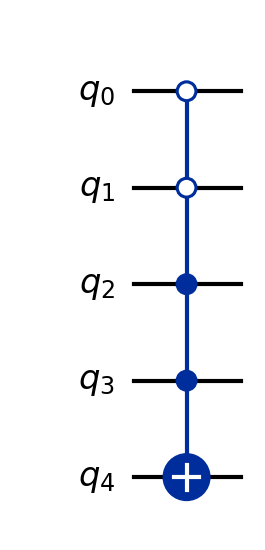

The above code generates a quantum circuit which flips the state of q_4 if and only if {q_3,q_2,q_1,q_0} == 4'b1100, i.e.:

MCX Gate of the above circuit, showing that q_2, q_3 are filled and need to be true in order to trigger

Your bitflip oracle must read its inputs from the circuit’s lowest indexed bits (with the higher indexed variables passed in via larger qubit index), the output should be stored in the next highest bit, and any ancilla bits should be placed on higher index bits. Any computation done on anything besides the target qubits must be “uncomputed” back to their original state so they can be reused for later computation.

For example, if we are provided a CNF for two variables and we use an additional 2 ancilla bits, the bits should be used as follows:

from qiskit import QuantumCircuit, QuantumRegister, AncillaRegister

inputs = QuantumRegister(2, "inputs")
output = QuantumRegister(1, "output")
ancilla = AncillaRegister(2, "ancilla")
qc = QuantumCircuit(inputs, output, ancilla)
qc.append(oracle, range(5))

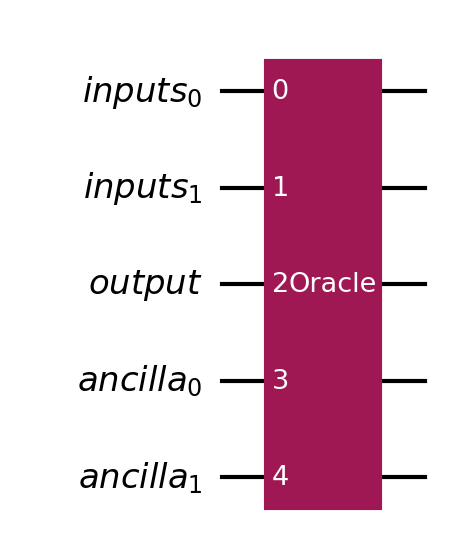

Diagram showing the ordering of bits coming into an oracle. Least significant bits are input, followed by an output bit, and two ancilla bits at the most significant indices

Where var2 is fed into inputs_1 and var1 into inputs_0 (the indices differ by one since the variable indices must start at 1, not 0). You should assume that all non-input qubits are initialized to \(\ket 0\) when passed into the circuit.

Your Phase Oracle must follow the same rules, except that there is no requirement of an “output bit” (the output is instead encoded in the relative phase of the state). However, the simplest solution is to keep the output bit, but prepare it in the \(\ket -\) state, as described in lecture. You should assume that all non-input qubits are initialized to \(\ket 0\) when passed into the circuit and should be uncomputed back to \(\ket 0\) by the end.

Part II: Grover’s Algorithm and Quantum Counting

References [1] [2]

Inside grover.py, you will implement functions to create a single iteration of the Grover operator (i.e. phase oracle implementing the provided CNF followed by a diffuser), as well as a full Grover implementation for a specified number of iterations. You can use your own oracle functions to test these functions, but they should work with any oracle implementations that meet the above specifications (i.e. your Grover implementation should work with oracles containing any number of ancilla bits).

counter.py contains the prototypes for functions to implement a quantum counting circuit, so that you can estimate the number of solutions to a constraint problem. Note that this circuit must return an estimate for the number of solutions. Implementing the diffuser as described in class results in a phase that would calculate the number of non-solutions. To fix this, you will need to alter the phase of the diffuser by -1. A simple way to do this is by placing the sequence ZXZX in the circuit.

The control method will be helpful for creating controlled versions of the Grover operator.

Part III: Driver

Once the other components of the project are completed, you will have everything you need to implement the constraint solver. driver.py will be run with a command line argument specifying the name of a comma-separated-value (CSV) file describing the constraints.

Each row of the CSV file is a comma-separated list of names (optionally prefixed by a tilde (~) character to indicate its negation) which forms a single clause. Each row is ANDed together to form the overall CNF formula. For example, the contents of file test_1.csv:

Richard,Leon,Jon
~Leon,~Jon

correspond to the CNF:

(Richard or Leon or Jon) and (~Leon or ~Jon)


Your driver should operate as follows, printing the specified messages to standard output when appropriate:

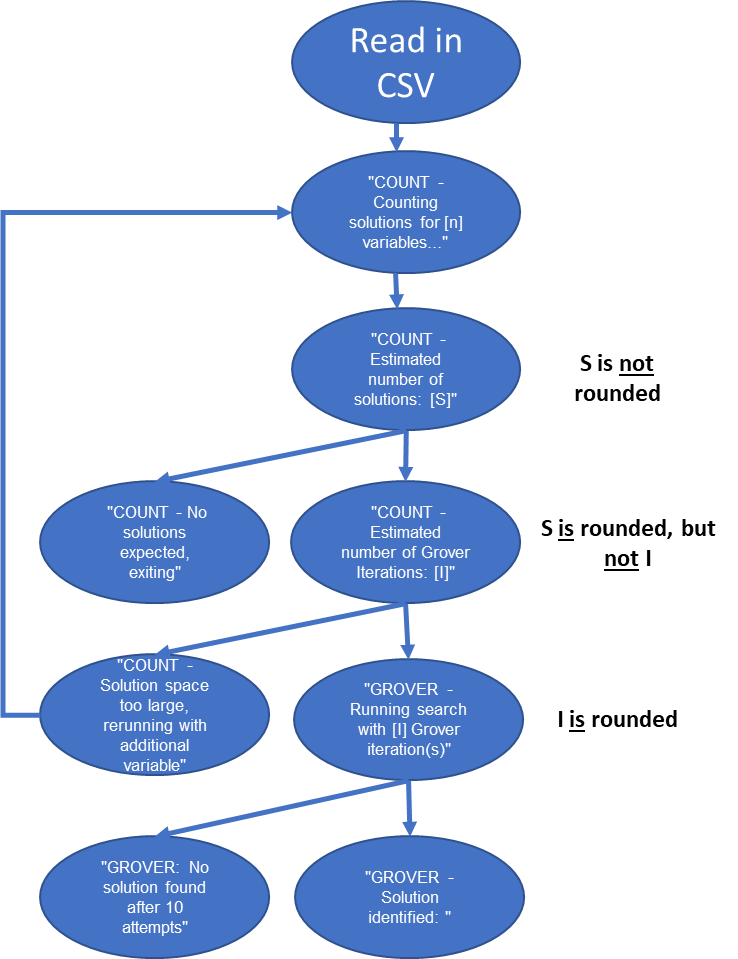

All rounding should be to the nearest integer (i.e. not a floor or ceiling round). A summary of this (along with reminders of when you should and should not round) is shown in the flowchart below:

Flowchart of above stipulations

It’s recommended that you keep the number of “shots” low for these experiments low to avoid timing out. In particular, you probably only need one or two shots for running Grover’s algorithm.

For the given file test_1.csv

Richard,Wayne,Jon
~Wayne,~Jon

The output should be (blank lines are optional and ignored):

COUNT - Counting solutions for 3 variables...
COUNT - Estimated number of solutions: 4.78
COUNT - Estimated number of Grover Iterations: 0.99
COUNT - Solution space too large, rerunning with additional variable

COUNT - Counting solutions for 4 variables...
COUNT - Estimated number of solutions: 4.94
COUNT - Estimated number of Grover Iterations: 1.40


GROVER - Running search with 1 Grover iteration(s)
GROVER - Solution identified: Richard Jon

Any of the other four possible solutions are also valid.

test_2.csv gives an example where no solutions are possible:

Richard
Wayne,Jon
~Richard,~Wayne
~Richard,~Jon
~Wayne,~Jon

The output should be:

COUNT - Counting solutions for 3 variables...
COUNT - Estimated number of solutions: 0.00
COUNT - No solutions expected, exiting

Restrictions

While you are encouraged to reference these for your own testing and understanding, your submitted code may not use the following Qiskit libraries:

Otherwise, you may use anything in the Qiskit SDK and the numpy, math, random, and unittest packages.

Testing

You must provide a set of test functions written in tests_p2_oracle.py and tests_p2_algorithms.py to the autograder. tests_p2_oracle.py should contain unit tests for each method in oracle.py and tests_p2_algorithms.py should contain unit tests for each method in counter.py and grover.py. You must use the Unittest model discussed in lab. Your tests will be graded on whether they cause assertion failures when run on buggy solutions, but do not cause assertion failures on correct implementations.

You are limited to 50 test functions per file, and each test case must run in 20 seconds. This is far more than needed to expose the instructor bugs. Make sure to prepend your test class names with “Test” and test method names with test_ to be handled properly by the unittest framework.

Submission and Grading

Submit oracle.py, grover.py, counter.py, driver.py, tests_p2_oracle.py, and tests_p2_algorithms.py to the autograder using the direct link at the top of this page.

Because this project is larger in scope than P1, there are 2 checkpoints worth a moderate amount of your overall grade to let you know if you are on track to finish:

We will grade your code on functional correctness. As a reminder, you may not share any part of your solution with others. This includes both code and test cases. You are however encouraged to discuss the projects in a way that does not involve sharing code. You will get feedback on your total score, but you will not have access to what the private test cases are checking for.

Efficiency is not graded, but your code must complete in a reasonable amount of time. Note that for general quantum circuits, simulation takes an exponential amount of time. We will only grade your code on CNFs with up to 4 variables and 4 clauses, and you should not submit test cases larger than this to the autograder or it may time out.

Due to rounding, your unitary matrices and state vector calculations may slightly deviate from the correct answer. We will check that every value calculated is within .00001.

Your driver is the only design file that should add measurements to your circuits. The private tests will assume that you do not already have measurements on the circuits produced by oracle.py, grover.py, and counter.py. The private tests will fail if you already have measurements added or classical bits in your circuit. Accordingly, your test functions should add measurements when necessary.

In addition to checking simulated output, we will also test your code by checking the unitary matrices corresponding to your circuits1. You should therefore ensure that any phases match the documentation and that you properly uncompute when necessary.

  1. Note that because the spec offers some ambiguity in how you implement your functions, we will only check sub-matrices corresponding to bits that are actually measured. We will also give credit for any matrix that is within a global phase of the expected output. ↩
